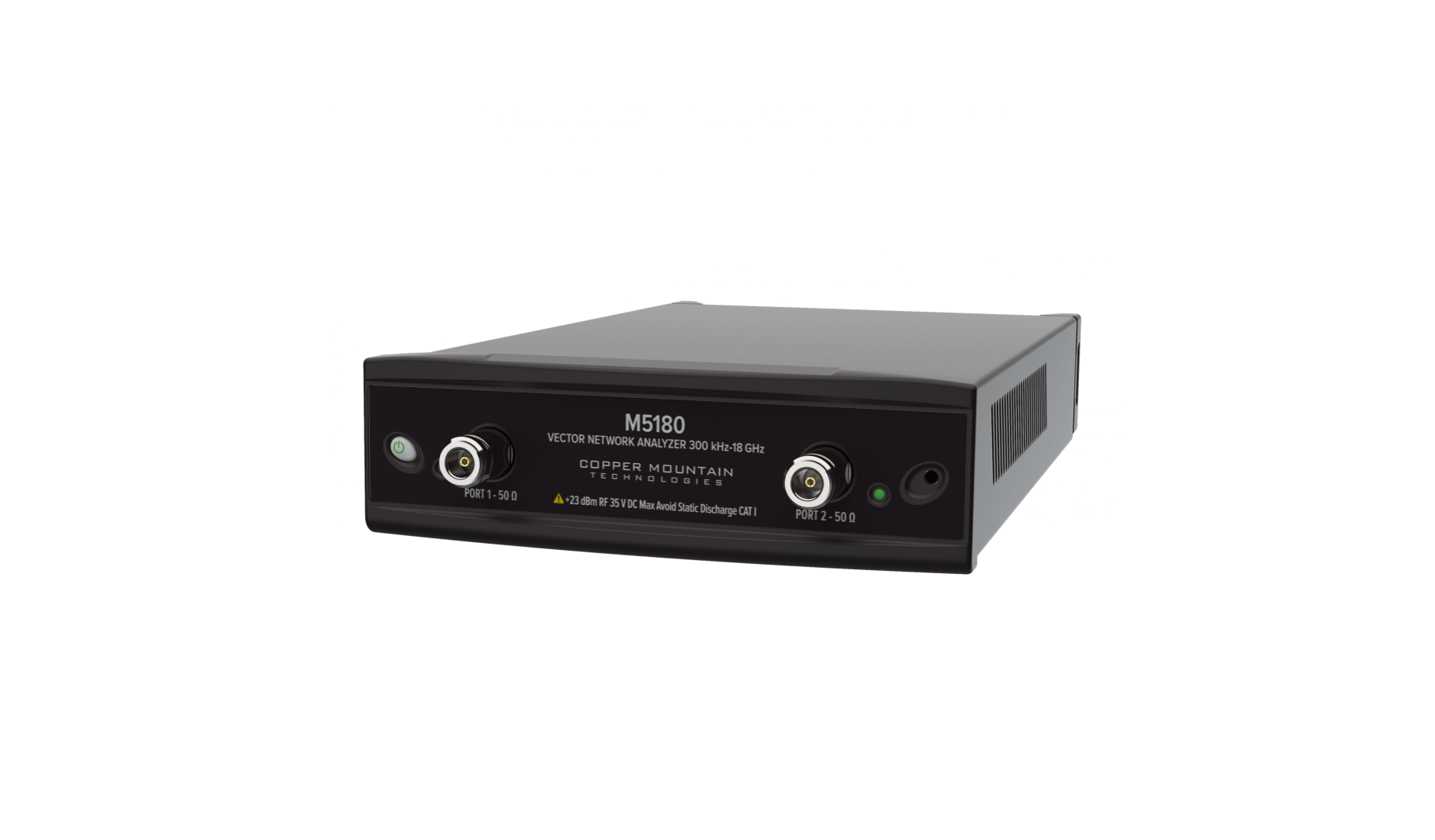

Vector Network Analyzers – CMT M-Series

The M-Series is a 2-port, up to 18 GHz Vector Network Analyzer that delivers metrology-grade performance with a economical software package

This portable low weight, <4kg,  vector network analyzer can be battery powered and used in the field, in the laboratory, and in production testing.

Download datasheet here!

Description

The M-Series VNA’s are 2-port, 300 kHz to 4.5 GHz/6.5 GHz/8.5 GHz/18 GHz Vector Network Analyzers that delivers metrology-grade performance with a economical software package that includes:

  • Linear/logarithmic sweeps with multiple trace formats
  • Power sweeps
  • 16 independent channels with up to 16 traces each
  • Markers with marker search tools and marker math, various conversion algorithms, and limit tests for pass/fail criteria, etc.
  • Test Automation programming in LabView, Python, MATLAB, .NET, etc.

VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.



Additional information

Frequency Range

300 kHz to 4.5 GHz/6.5 GHz/8.5 GHz/18 GHz

Measurement Parameters

S11, S21, S12, S22

Sweep Types

Linear frequency, log frequency, segment, power sweep

Dynamic Range

130 dB typ. (10 Hz IF BW)

Measurement speed

30 micro seconds

Output power adjustment range

-40 dBm to +10 dBm

Measurement points per sweep

up to 200,001
